Rectangular mesh TEM grids
Rectangular mesh TEM grids (also known as slotted mesh grids) are useful to support specimens where greater viewing area is required compared to square mesh grids. They are available in a range of mesh sizes in copper, nickel and gold.
Each grid type is also available with handles for ease of handling
Specification: rectangular (slotted mesh) TEM grids
| Mesh | Pitch µm |
Hole µm |
Bar µm |
Transmission % |
Rim width µm |
Thickness µm |
Tolerance ± µm | Diameter mm |
| 50 x 200 | 508 x 127 | 425 x 87 | 40 | 62 | 375 | 25 | 5 | 3.05 |
| 75 x 300 | 340 x 85 | 285 x 55 | 30 | 62 | 375 | 25 | 5 | 3.05 |
| 75 x 300 staggered | 339 x 85 | 284 x 55 | 30 | 55 | 375 | 25 | 5 | 3.05 |
| 100 x 400 | 254 x 64 | 231 x 40 | 23 | 57 | 375 | 25 | 5 | 3.05 |
Ordering information
Rectangular mesh TEM grids
-
Slotted mesh grids 75/300 Copper
Slotted mesh grids 75/300 Copper (Qty 100)
£21.52 Add to basket -
Slotted mesh grids 75/300 Copper with Rhodium
Slotted mesh grids 75/300 Copper with Rhodium (Qty 100)
£26.43 Add to basket -
Slotted mesh grids 75/300 Gold
Slotted mesh grids 75/300 Gold (Qty 25)
£36.21 Add to basket -
Slotted mesh grids 75/300 Gold ( High Grade )
Slotted mesh grids 75/300 Gold ( High Grade ) (Qty 100)
£133.39 Add to basket -
Slotted mesh grids 75/300 Nickel
Slotted mesh grids 75/300 Nickel (Qty 100)
£25.54 Add to basket -
Slotted mesh grids 75/300 Nickel ( High Grade )
Slotted mesh grids 75/300 Nickel ( High Grade ) (Qty 100)
£27.32 Add to basket -

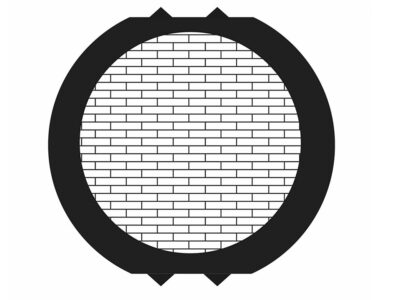

Slotted mesh grids 75/300 staggered pattern Copper with Rhodium
Slotted mesh grids 75/300 staggered pattern Copper with Rhodium (Qty 100)
£26.43 Add to basket -
Slotted mesh grids 75/300 staggered pattern Copper
Slotted mesh grids 75/300 staggered pattern Copper (Qty 100)
£21.54 Add to basket -
Slotted mesh grids 75/300 staggered pattern Gold
Slotted mesh grids 75/300 staggered pattern Gold (Qty 25)
£36.21 Add to basket -
Slotted mesh grids 75/300 staggered pattern Nickel
Slotted mesh grids 75/300 staggered pattern Nickel (Qty 100)
£25.52 Add to basket -

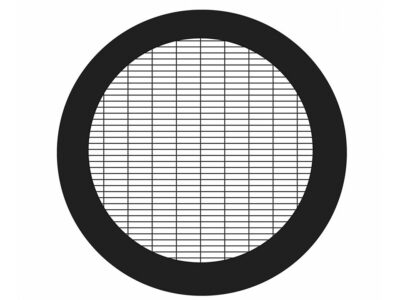

Slotted mesh grids 100/400 Copper
Slotted mesh grids 100/400 Copper (Qty 100)
£16.56 Add to basket -
Slotted mesh grids 100/400 Gold
Slotted mesh grids 100/400 Gold (Qty 100)
£122.66 Add to basket -
Slotted mesh grids 100/400 Nickel
Slotted mesh grids 100/400 Nickel (Qty 100)
£19.91 Add to basket -

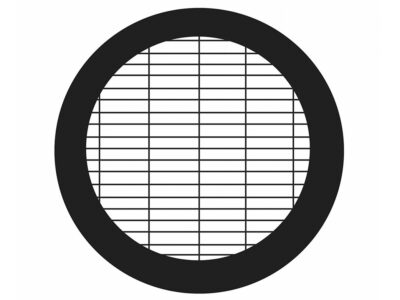

Slotted mesh grids 50/200 Copper
Slotted mesh grids 50/200 Copper (Qty 100)
£21.52 Add to basket -
Slotted mesh grids 50/200 Copper with Rhodium
Slotted mesh grids 50/200 Copper with Rhodium (Qty 100)
£26.41 Add to basket -
Slotted mesh grids 50/200 Nickel
Slotted mesh grids 50/200 Nickel (Qty 100)
£23.92 Add to basket
Rectangular mesh TEM grids with handles
-

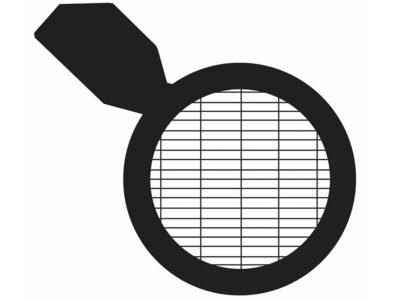

Slotted mesh grids with handles. 50/200 Copper
Slotted mesh grids with handles. 50/200 Copper (Qty 100)
£21.52 Add to basket -
Slotted mesh grids with handles. 50/200 Nickel
Slotted mesh grids with handles. 50/200 Nickel (Qty 100)
£23.92 Add to basket -

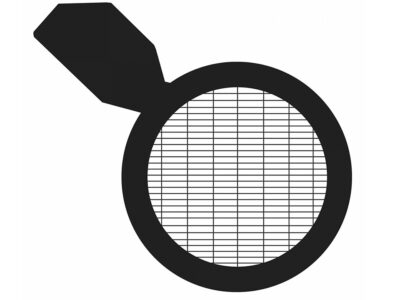

Slotted mesh grids with handles 75/300 Copper
Slotted mesh grids with handles. 75/300 Copper (Qty 100)
£21.52 Add to basket -
Slotted mesh grids with handles. 75/300 Nickel
Slotted mesh grids with handles. 75/300 Nickel (Qty 100)
£23.92 Add to basket
