Square mesh TEM grids
Square mesh TEM support grids are the most popular type of grid for routine transmission electron microscopy (TEM) applications.
For routine TEM use they are available in mesh sizes from 50 to 600 in copper, copper with rhodium, gold and nickel.
For specialised applications including high temperature work we also offer these TEM grids in molybdenum, titanium, aluminium and stainless steel. See: square mesh grids – special metals.
Specifications: square mesh TEM grids
|
Grid mesh |
Pitch |
Hole |
Bar |
Transmission |
Rim width |
Thickness |
Tolerance ± µm |
Diameter |
|
50 |
508 |
425 |
83 |
70 |
375 |
25 |
5 |
3.05 |
|
75 |
339 |
284 |
55 |
70 |
375 |
25 |
5 |
3.05 |
|
100 |
254 |
204 |
50 |
65 |
375 |
25 |
5 |
3.05 |
|
150 |
169 |
125 |
44 |
55 |
375 |
25 |
5 |
3.05 |
|
200 |
127 |
90 |
37 |
50 |
375 |
25 |
5 |
3.05 |
|
300 |
85 |
54 |
31 |
40 |
375 |
25 |
5 |
3.05 |
|
400 |
64 |
38 |
26 |
35 |
375 |
25 |
5 |
3.05 |
|
500 |
51 |
28 |
23 |
30 |
375 |
25 |
5 |
3.05 |
|
600 |
41 |
26 |
15 |
42 |
375 |
25 |
5 |
3.05 |
Ordering information
Copper square mesh TEM grids
-
Plain square mesh grids 100mesh Copper
Plain square mesh grids 100mesh Copper (Qty 100)
£15.93 Add to basket -
Plain square mesh grids 150mesh Copper
Plain square mesh grids 150mesh Copper (Qty 100)
£15.93 Add to basket -
Plain square mesh grids 200mesh Copper
Plain square mesh grids 200mesh Copper (Qty 100)
£15.93 Add to basket -
Plain square mesh grids 300mesh Copper
Plain square mesh grids 300mesh Copper (Qty 100)
£15.93 Add to basket -
Plain square mesh grids 400mesh Copper
Plain square mesh grids 400mesh Copper (Qty 100)
£16.50 Add to basket -

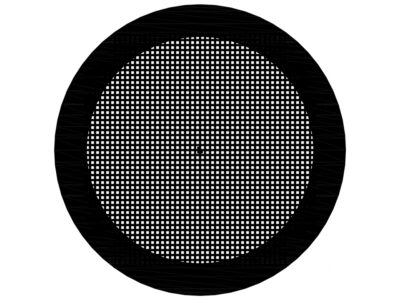

Plain square mesh grids 500mesh Copper
Plain square mesh grids 500mesh Copper (Qty 100)
£20.90 Add to basket -
Plain square mesh grids 50mesh Copper
Plain square mesh grids 50mesh Copper (Qty 100)
£15.91 Add to basket -

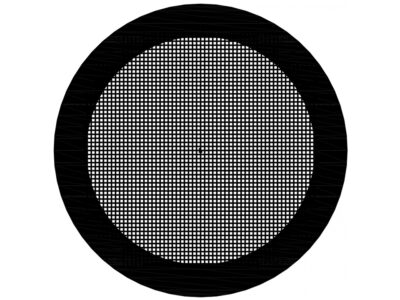

Plain square mesh grids 600mesh Copper
Plain square mesh grids 600mesh Copper (Qty 100)
£23.92 Add to basket -
Plain square mesh grids 75mesh Copper
Plain square mesh grids 75mesh Copper (Qty 100)
£15.93 Add to basket
Copper with rhodium square mesh TEM grids
-
Plain square mesh grids 100mesh Copper with Rhodium
Plain square mesh grids 100mesh Copper with Rhodium (Qty 100)
£18.53 Add to basket -
Plain square mesh grids 150mesh Copper with Rhodium
Plain square mesh grids 150mesh Copper with Rhodium (Qty 100)
£18.53 Add to basket -
Plain square mesh grids 200mesh Copper with Rhodium
Plain square mesh grids 200mesh Copper with Rhodium (Qty 100)
£18.53 Add to basket -
Plain square mesh grids 300mesh Copper with Rhodium
Plain square mesh grids 300mesh Copper with Rhodium (Qty 100)
£18.53 Add to basket -
Plain square mesh grids 400mesh Copper with Rhodium
Plain square mesh grids 400mesh Copper with Rhodium (Qty 100)
£18.53 Add to basket -
Plain square mesh grids 600mesh Copper with Rhodium
Plain square mesh grids 600mesh Copper with Rhodium (Qty 100)
£23.47 Add to basket -
Plain square mesh grids 75mesh Copper with Rhodium
Plain square mesh grids 75mesh Copper with Rhodium (Qty 100)
£18.53 Add to basket
Gold square mesh TEM grids
-
Plain square mesh grids 100mesh Gold
Plain square mesh grids 100mesh Gold (Qty 25)
£26.46 Add to basket -
Plain square mesh grids 100mesh Gold ( High Grade )
Plain square mesh grids 100mesh Gold ( High Grade ) (Qty 100)
£137.39 Add to basket -
Plain square mesh grids 150mesh Gold
Plain square mesh grids 150mesh Gold (Qty 25)
£26.46 Add to basket -
Plain square mesh grids 150mesh Gold ( High Grade )
Plain square mesh grids 150mesh Gold ( High Grade ) (Qty 100)
£137.39 Add to basket -
Plain square mesh grids 200mesh Gold
Plain square mesh grids 200mesh Gold (Qty 25)
£26.46 Add to basket -
Plain square mesh grids 200mesh Gold ( High Grade )
Plain square mesh grids 200mesh Gold ( High Grade ) (Qty 100)
£137.39 Add to basket -
Plain square mesh grids 300mesh Gold
Plain square mesh grids 300mesh Gold (Qty 25)
£26.46 Add to basket -
Plain square mesh grids 300mesh Gold ( High Grade )
Plain square mesh grids 300mesh Gold ( High Grade ) (Qty 100)
£137.39 Add to basket -
Plain square mesh grids 400mesh Gold
Plain square mesh grids 400mesh Gold (Qty 25)
£28.90 Add to basket -
Plain square mesh grids 400mesh Gold ( High Grade )
Plain square mesh grids 400mesh Gold ( High Grade ) (Qty 100)
£140.46 Add to basket -
Plain square mesh grids 500mesh Gold
Plain square mesh grids 500mesh Gold (Qty 25)
£34.13 Add to basket -
Plain square mesh grids 50mesh Gold
Plain square mesh grids 50mesh Gold (Qty 25)
£26.46 Add to basket -
Plain square mesh grids 75mesh Gold
Plain square mesh grids 75mesh Gold (Qty 25)
£26.46 Add to basket -
Plain square mesh grids 75mesh Gold ( High Grade )
Plain square mesh grids 75mesh Gold ( High Grade ) (Qty 100)
£137.39 Add to basket
Nickel square mesh TEM grids
-
Plain square mesh grids 100mesh Nickel
Plain square mesh grids 100mesh Nickel (Qty 100)
£17.96 Add to basket -
Plain square mesh grids 100mesh Nickel ( High Grade )
Plain square mesh grids 100mesh Nickel ( High Grade ) (Qty 100)
Read more -
Plain square mesh grids 150mesh Nickel
Plain square mesh grids 150mesh Nickel (Qty 100)
£17.96 Add to basket -
Plain square mesh grids 150mesh Nickel ( High Grade )
Plain square mesh grids 150mesh Nickel ( High Grade ) (Qty 100)
£19.36 Add to basket -
Plain square mesh grids 200mesh Nickel
Plain square mesh grids 200mesh Nickel (Qty 100)
£17.96 Add to basket -
Plain square mesh grids 200mesh Nickel ( High Grade )
Plain square mesh grids 200mesh Nickel ( High Grade ) (Qty 100)
Read more -
Plain square mesh grids 300mesh Nickel
Plain square mesh grids 300mesh Nickel (Qty 100)
£17.94 Add to basket -
Plain square mesh grids 300mesh Nickel ( High Grade )
Plain square mesh grids 300mesh Nickel ( High Grade ) (Qty 100)
£19.36 Add to basket -
Plain square mesh grids 400mesh Nickel
Plain square mesh grids 400mesh Nickel (Qty 100)
£19.91 Add to basket -
Plain square mesh grids 400mesh Nickel ( High Grade )
Plain square mesh grids 400mesh Nickel ( High Grade ) (Qty 100)
Read more -
Plain square mesh grids 500mesh Nickel
Plain square mesh grids 500mesh Nickel (Qty 100)
£23.92 Add to basket -
Plain square mesh grids 50mesh Nickel
Plain square mesh grids 50mesh Nickel (Qty 100)
£17.96 Add to basket -
Plain square mesh grids 600mesh Nickel
Plain square mesh grids 600mesh Nickel (Qty 100)
£23.93 Add to basket -
Plain square mesh grids 75mesh Nickel
Plain square mesh grids 75mesh Nickel (Qty 100)
£17.96 Add to basket -
Plain square mesh grids 75mesh Nickel ( High Grade )
Plain square mesh grids 75mesh Nickel ( High Grade ) (Qty 100)
Read more
