Square mesh TEM grids – special metals
Square mesh grids are the most popular type of grid for TEM applications.
For specialised applications – including high temperature work – square mesh grids are available in mesh sizes 50 to 400 in molybdenum, titanium, aluminium and stainless steel.
For routine TEM use they are also available in mesh sizes from 50 to 600 in copper, copper with rhodium, gold and nickel.
Specifications: square mesh TEM grids
| Mesh | Pitch µm |
Hole µm |
Bar µm |
Transmission % |
Rim width µm |
Thickness* µm |
Tolerance ± µm | Diameter mm |
| 50 | 508 | 425 | 83 | 70 | 375 | 25 | 5 | 3.05 |
| 75 | 339 | 284 | 55 | 70 | 375 | 25 | 5 | 3.05 |
| 100 | 254 | 204 | 50 | 65 | 375 | 25 | 5 | 3.05 |
| 150 | 169 | 125 | 44 | 55 | 375 | 25 | 5 | 3.05 |
| 200 | 127 | 90 | 37 | 50 | 375 | 25 | 5 | 3.05 |
| 300 | 85 | 54 | 31 | 40 | 375 | 25 | 5 | 3.05 |
| 400 | 64 | 38 | 26 | 35 | 375 | 25 | 5 | 3.05 |
| 500 | 51 | 28 | 23 | 30 | 375 | 25 | 5 | 3.05 |
| 600 | 41 | 26 | 15 | 42 | 375 | 25 | 5 | 3.05 |
* Except titanium (15µm) and stainless steel (12µm)
Ordering information
Aluminium square TEM grids
-

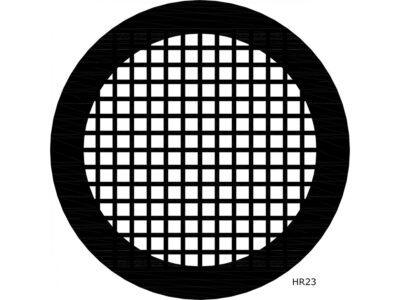

Plain square mesh grids 100mesh Aluminium
Plain square mesh grids 100mesh Aluminium (Qty 25)
£39.89 Add to basket -

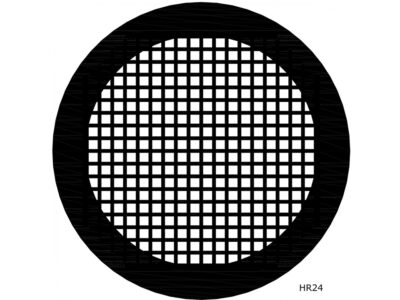

Plain square mesh grids 150mesh Aluminium
Plain square mesh grids 150mesh Aluminium (Qty 25)
£39.89 Add to basket -

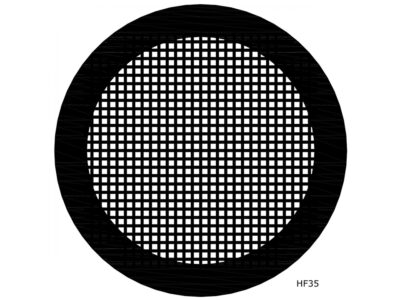

Plain square mesh grids 200mesh Aluminium
Plain square mesh grids 200mesh Aluminium (Qty 25)
£39.89 Add to basket -
Plain square mesh grids 300mesh Aluminium
Plain square mesh grids 300mesh Aluminium (Qty 25)
£39.90 Add to basket -

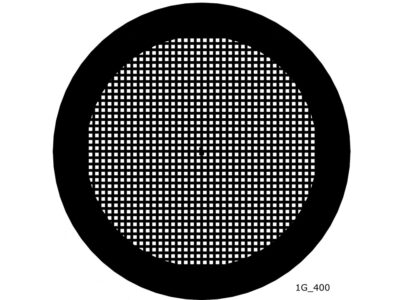

Plain square mesh grids 400mesh Aluminium
Plain square mesh grids 400mesh Aluminium (Qty 25)
£42.14 Add to basket -

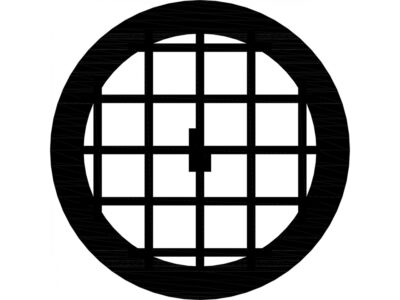

Plain square mesh grids 50mesh Aluminium
Plain square mesh grids 50mesh Aluminium (Qty 25). PLEASE NOTE: Minimum order quantity is x 5 pots of 25.
£39.89 Add to basket -

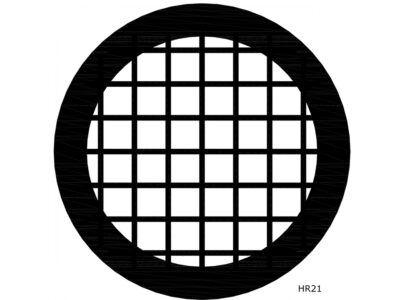

Plain square mesh grids 75mesh Aluminium
Plain square mesh grids 75mesh Aluminium (Qty 25)
£39.89 Add to basket
Molybdenum square TEM grids
-
Plain square mesh grids 100mesh Molybdenum
Plain square mesh grids 100mesh Molybdenum (Qty 25)
£47.87 Add to basket -
Plain square mesh grids 150mesh Molybdenum
Plain square mesh grids 150mesh Molybdenum (Qty 25)
£47.87 Add to basket -
Plain square mesh grids 200mesh Molybdenum
Plain square mesh grids 200mesh Molybdenum (Qty 25)
£47.87 Add to basket -
Plain square mesh grids 300mesh Molybdenum
Plain square mesh grids 300mesh Molybdenum (Qty 25)
£47.87 Add to basket -
Plain square mesh grids 50mesh molybdenum
Plain square mesh grids 50mesh Molybdenum (Qty 25). PLEASE NOTE: Minimum order quantity is x 5 pots of 25.
£47.56 Add to basket -

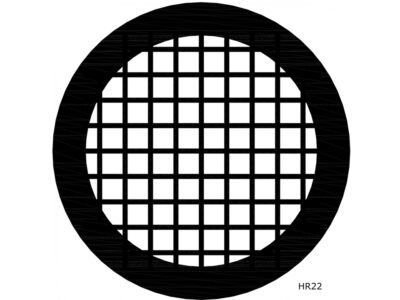

Plain square mesh grids 75mesh Molybdenum
Plain square mesh grids 75mesh Molybdenum (Qty 25)
£47.87 Add to basket
Stainless steel square TEM grids
-
Plain square mesh grids 100mesh Stainless Steel
Plain square mesh grids 100mesh Stainless Steel (Qty 25)
£33.50 Add to basket -
Plain square mesh grids 150mesh Stainless Steel
Plain square mesh grids 150mesh Stainless Steel (Qty 25)
£33.50 Add to basket -
Plain square mesh grids 200mesh Stainless Steel
Plain square mesh grids 200mesh Stainless Steel (Qty 25)
£33.50 Add to basket -
Plain square mesh grids 300mesh Stainless Steel
Plain square mesh grids 300mesh Stainless Steel (Qty 25)
£33.50 Add to basket -
Plain square mesh grids 50mesh stainless steel
Plain square mesh grids 50mesh Stainless Steel (Qty 25). PLEASE NOTE: Minimum order quantity is x 5 pots of 25.
£33.28 Add to basket -
Plain square mesh grids 75mesh Stainless Steel
Plain square mesh grids 75mesh Stainless Steel (Qty 25)
£33.50 Add to basket
Titanium TEM grids
-
Plain square mesh grids 100mesh Titanium
Plain square mesh grids 100mesh Titanium (Qty 25)
£90.62 Add to basket -
Plain square mesh grids 150mesh Titanium
Plain square mesh grids 150mesh Titanium (Qty 25)
£90.62 Add to basket -
Plain square mesh grids 200mesh Titanium
Plain square mesh grids 200mesh Titanium (Qty 25)
£90.62 Add to basket -
Plain square mesh grids 300mesh Titanium
Plain square mesh grids 300mesh Titanium (Qty 25)
£120.98 Add to basket -
Plain square mesh grids 400mesh Titanium
Plain square mesh grids 400mesh Titanium (Qty 25)
£135.54 Add to basket -
Plain square mesh grids 50mesh titanium
Plain square mesh grids 50mesh titanium (Qty 25). PLEASE NOTE: Minimum order quantity is x 5 pots of 25
£90.57 Add to basket -
Plain square mesh grids 75mesh Titanium
Plain square mesh grids 75mesh Titanium (Qty 25)
£90.62 Add to basket
